D&D Logo D&Ds 15 Degree inline nutrunner attachment comes in 3 lengths for ergonomic fastener assembly in hard to reach spots.

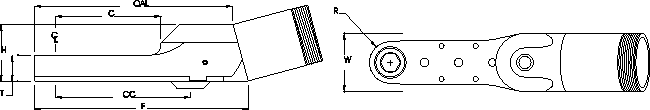

15 Degree Cad Drawing

Assy No A Dim C Dim CC Dim F Dim H Dim OAL Dim R Dim S Dim T Dim W Torque Loss (estimated) (1) Max Hex (mm) (1) Max Torque (ft-lbs) (1) Cycles (3) Max Hex (mm) (3) Max Torque (ft-lbs) (3) Cycles
CF153 N/A 1.10 1.98 4.34 1.69 3.86  .63 N/A  .78 1.75 10% 16.0 33.2 10,000 16.0 14.8 250,000
CF154 N/A 2.12 3.00 5.36 1.69 4.89  .63 N/A  .78 1.75
CF154N N/A 1.78 2.66 4.95 1.69 4.48  .56 N/A  .78 1.75
CF155 N/A 3.14 4.02 6.38 1.69 5.91  .63 N/A  .78 1.75
CF155M N/A 3.14 4.02 6.32 1.69 5.84  .56 N/A  .78 1.75
CF156 N/A 4.17 5.04 7.40 1.69 6.93  .63 N/A  .78 1.75
